2.2 Inch SPI LCD Module 240*320 HDMI Display Module YBN022EGS-Q1

Delivery Time : 30-45 days

Outline : 118.5×84.7×5.2 mm

Display Mode : Normally White, Transmissive

View Direction : free/all

Viewing Area : 116.2mm×87.1mm

Signal Interface : LVDS

Lumens Degrees : 1000cd/m²

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Price : $4.5-5/pieces

Packaging Details : 16*15*6(cm)/23g

Controller Ic : SSD1316

Storage Temperature : -30℃~80℃

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Response Time : 6ms

Display Color : Monochrome Black and White

Operating_Temperature : -20°C to 70°C

MOQ : 500

Name : SPI LCD Module

Color Gamut : 72 % of NTSC(Typ.)

Model Number : YBN022EGS-Q1(MSP2202)

Place of Origin : Guangdong, China

Payment Terms : T/T

Supply Ability : 5K/month

Drive System : a-Si TFT active matrix

Brand Name : XXT

Contact Now

YBN022EGS-Q1 2.2-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface

Detail Information

Place of Origin

China

Brand Name

XXT

Certification

CE/ROHS

Model Number

YBN022EGS-Q1(MSP2202)

Type:

SPI Display

Display Size:

2.2 Inch

Supplier Type:

Factory

Highlight:

2.2 inch SPI Display

240*320 Resolution LCD Module

SPI Interface TFT Display

Product Description

YBN022EGS-Q1 2.2-inch SPI Display LCD Module with 240×320 Resolution and SPI Interface

High-performance 2.2-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications.

2.2 Inch SPI LCD Module 240*320 HDMI Display Module YBN022EGS-Q1

Product Features

2.2-inch color screen supporting 65K color display for rich color reproduction
320×240 high resolution for clear, sharp display quality
SPI serial bus interface requiring minimal I/O connections
Integrated SD card slot for easy expansion and experimentation
Comprehensive sample programs provided for quick development
Military-grade process standards ensuring long-term stable operation
Complete underlying driver technical support included

Technical Specifications

Parameter	Specification
Size	2.2 inch
SKU	MSP2202
Resolution	240×320 dots
Module Interface	4-wire SPI interface
Display Color	RGB 65K color
Active Area	33.84×45.12 (mm)
Dimensions	40.10×67.20 (mm)
VCC Power Voltage	3.3V / 5V
Power Consumption	0.42W
Logic IO Port Voltage	3.3V (TTL)
Weight	25g

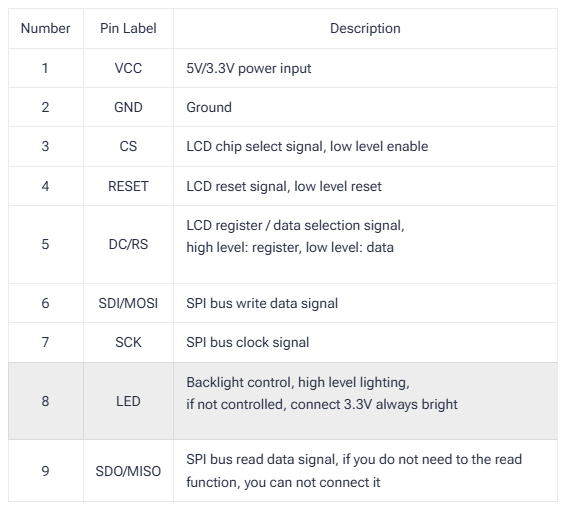

Interface Description

Product Tags:

2.2 Inch SPI LCD Module

SPI LCD Module 240*320

240*320 HDMI Display Module

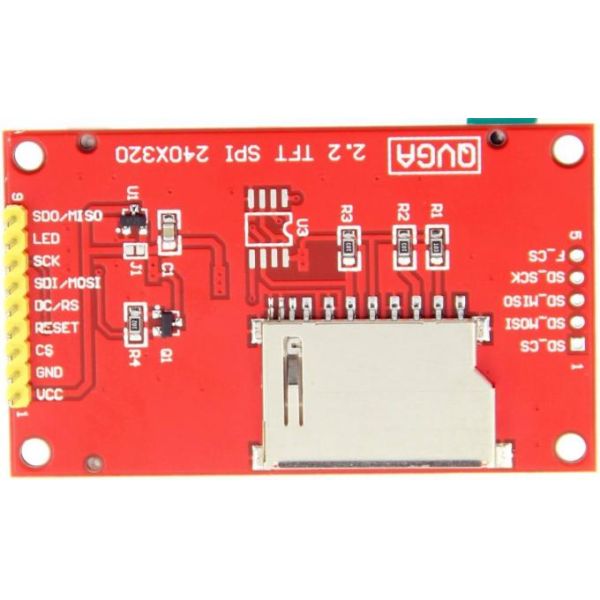

2.2 Inch SPI LCD Module 240*320 HDMI Display Module YBN022EGS-Q1 Images
