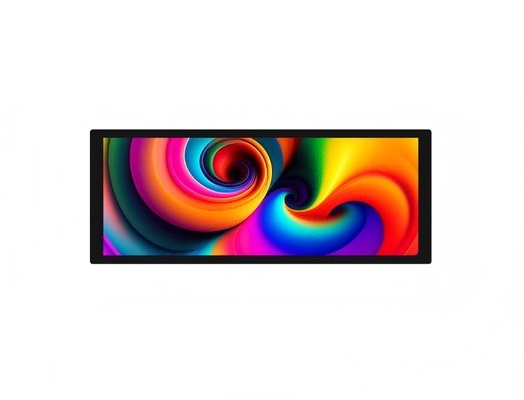

9.3 Inch Bar TFT LCD Touch Display Module 600×1600 Resolution MIPI Interface 500 Nits
600×1600 Resolution MIPI Interface Capacitive Touch Screen with 500 cd/m² Brightness
Product Overview
The YVT0930KVM-X1 is a high-performance 9.3-inch bar-type TFT LCD touch display engineered for industrial control systems, vehicle displays, smart terminals, medical equipment, and embedded HMI applications.
Featuring a 600×1600 high-resolution display, MIPI interface, capacitive touch functionality, and a slim bar-format design, this display module delivers excellent image quality, responsive touch performance, and reliable operation across a wide range of professional applications.
Designed with a premium cover glass structure, 2.5D edge treatment, and wide viewing angle technology, the module provides an ideal solution for modern user interfaces that require a long-format display design.
Key Features
- 9.3-inch ultra-wide bar TFT LCD display
- 600 × 1600 high-resolution display
- MIPI display interface
- Capacitive touch technology
- I2C touch communication interface
- 500 cd/m² typical brightness
- 1200:1 contrast ratio
- 16.7 million display colors
- 75% NTSC color gamut
- Full viewing angle technology
- 2.5D cover glass design
- Black silk printing decorative border
- Surface hardness ≥5H
- Wide operating temperature support
- Flexible customization options
Technical Specifications
| Item |
Specification |
| Model Number |
YVT0930KVM-X1 |
| Display Size |
9.3 Inch |
| Resolution |
600 × 1600 |
| Display Technology |
TFT LCD |
| Display Mode |
Normally Black, Transmissive |
| Active Area |
82.944 × 221.184 mm |
| Module Dimensions |
91.80 × 237.80 × 6.60 mm |
| Brightness |
500 cd/m² (Typ.) |
| Contrast Ratio |
1200:1 (Typ.) |
| Color Depth |
16.7M Colors |
| Color Gamut |
75% NTSC |
| Display Interface |
MIPI (4-Lane) |
| Touch Interface |
I2C |
| Touch Type |
Capacitive Touch |
| Viewing Angle |
85°/85°/85°/85° |
| Cover Glass Transmittance |
≥85% |
| Surface Hardness |
≥5H |
| LED Lifetime |
30,000 Hours |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Certification |
CE / RoHS |
Product Advantages
Bar-Type Display Design
The elongated display structure provides an efficient visual layout for applications that require a vertical or horizontal information display format.
Suitable for:
- Industrial control panels
- Dashboard displays
- Digital signage equipment
- Smart terminals
- Embedded HMI systems
High-Resolution Image Quality
With a resolution of 600 × 1600 pixels, the display provides sharp text rendering and detailed graphical presentation.
Benefits include:
- Clear user interface display
- Enhanced information visibility
- Improved graphical performance
- Professional visual presentation
Responsive Capacitive Touch Technology
The integrated capacitive touch solution supports smooth and accurate user interaction.
Advantages include:
- Fast touch response
- Reliable operation
- Enhanced user experience
- Suitable for modern HMI applications
High Brightness Performance
The display offers a typical brightness of 500 cd/m², delivering excellent readability in various indoor and semi-bright environments.
Applications include:
- Industrial equipment
- Commercial devices
- Smart terminals
- Vehicle information systems
Wide Viewing Angle Technology
The full viewing angle design ensures consistent image quality from different viewing positions.
Benefits include:
- Better visibility
- Reduced color shifting
- Consistent image performance
- Improved user interaction
Premium Cover Glass Design
The display incorporates a high-transparency cover glass structure with 2.5D edge processing.
Features include:
- Modern appearance
- Enhanced durability
- Smooth touch experience
- Improved optical performance
Interface Configuration
| Interface |
Function |
| MIPI |
High-Speed Display Signal Transmission |
| I2C |
Touch Communication Interface |
The optimized interface design simplifies integration with embedded processors and custom display systems.
Application Areas
Industrial Automation
- Human Machine Interfaces (HMI)
- Industrial control systems
- Equipment monitoring terminals
- Smart manufacturing displays
Vehicle Display Systems
- Dashboard displays
- Smart cockpit interfaces
- Transportation control systems
- Vehicle information panels
Commercial Equipment
- Self-service terminals
- Interactive kiosks
- Retail equipment displays
- Digital control panels
Medical Devices
- Diagnostic equipment
- Portable testing instruments
- Monitoring systems
- Medical control interfaces
Smart Devices
- IoT control panels
- Smart home systems
- Embedded display terminals
- Intelligent equipment interfaces
Mechanical Design Benefits
Slim Profile Construction
The compact mechanical design allows easy integration into space-constrained equipment.
Long-Life Backlight System
With an LED lifetime of up to 30,000 hours, the display supports reliable long-term operation.
Enhanced Surface Protection
The hardened cover glass helps improve durability in demanding operating environments.
Customization Services
Display Customization
- Brightness adjustment
- Optical enhancement
- Color performance optimization
Touch Customization
- Touch panel configuration
- Cover glass modification
- Touch sensitivity tuning
Mechanical Customization
- FPC design optimization
- Connector customization
- Mechanical structure adaptation
OEM & ODM Support
- Private label solutions
- Logo integration
- Project-specific development
- Custom display solutions
Quality Assurance
Every display module undergoes comprehensive inspection and verification before shipment.
Testing procedures include:
- Display functionality testing
- Touch performance verification
- Optical inspection
- Electrical parameter validation
- Visual quality inspection
Packaging & Logistics
- Anti-static protective packaging
- Export-standard shipping cartons
- Sample order support
- Flexible order quantities
- Worldwide delivery support
Technical Support
Professional technical assistance is available throughout the development and integration process.
Support services include:
- Product selection guidance
- Hardware integration assistance
- Interface support
- Customization consultation
- Long-term project support
Why Choose YVT0930KVM-X1
The YVT0930KVM-X1 combines a high-resolution 600×1600 display, responsive capacitive touch technology, wide viewing angle performance, premium cover glass design, and industrial-grade reliability into a compact bar-format display solution.
It is an excellent choice for industrial automation, smart terminals, vehicle display systems, medical equipment, and customized embedded applications requiring a modern ultra-wide display with dependable long-term performance.
