4.3" RGB TFT LCD Display Module 800×480 | Industrial Embedded LCD Screen with LED Backlight
Product Overview
The YVO0430FER-H01 is a 4.3 inch TFT LCD display module designed for industrial embedded systems, smart control equipment, handheld terminals, medical devices, and HMI applications. Featuring an 800*480 resolution, Parallel RGB 24-bit interface, full viewing angle technology, and white LED backlight, this module delivers stable image performance and reliable operation in demanding environments.
Built with low power consumption and a compact slim structure, this display module is suitable for a wide range of industrial and commercial electronic applications requiring dependable visual output and long-term stability.
Key Features
- 4.3 inch TFT LCD module with 800*480 resolution
- Parallel RGB 24-bit interface for stable high-speed signal transmission
- Full viewing angle technology for enhanced visibility
- 16.7M color display for vivid image performance
- 300 cd/m² brightness suitable for indoor industrial equipment
- White LED backlight with up to 50,000 hours lifespan
- 3.3V low-voltage power supply design
- Compact and lightweight structure for embedded integration
- Wide operating temperature range from -20°C to +70°C
- High reliability for industrial and commercial applications
- Supports custom interface and structure solutions
- Environmentally compliant materials
Technical Specifications
| Item |
Specification |
| Display Size |
4.3 Inch |
| Display Type |
TFT-LCD Module |
| Model Number |
YVO0430FER-H01 |
| Resolution |
800(RGB) * 480 |
| Display Mode |
Transmissive, RGB Vertical Stripe |
| Color Depth |
16.7M Colors |
| Viewing Direction |
Full Viewing Angle |
| Interface |
Parallel RGB 24-bit |
| Brightness |
300 cd/m² (Typical) |
| Contrast Ratio |
300:1 ~ 400:1 |
| Response Time |
25~40 ms |
| Driver IC |
HX8664 / HX8264 Compatible |
| Input Voltage |
3.3V |
| Backlight Type |
White LED |
| LED Quantity |
7 LEDs Serial Connection |
| LED Lifetime |
50,000 Hours |

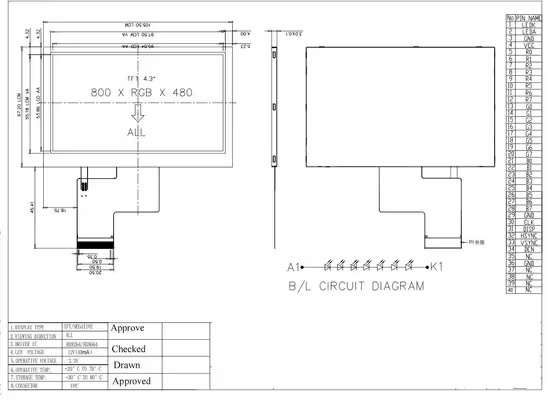

| Outline Dimension |
105.50 * 67.20 * 3.0 mm |
| Active Area |
95.04 * 53.86 mm |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Compliance |
CE, RoHS |
Product Advantages
High-Resolution Industrial Display: The 800*480 pixel resolution provides clear and stable image output for industrial control systems, embedded interfaces, and smart device applications.
Full Viewing Angle Technology: Wide viewing performance ensures consistent image visibility from multiple directions, improving user experience in equipment installations.
Reliable Industrial Performance: Designed for continuous operation environments with stable electrical characteristics, wide temperature support, and durable LED backlight performance.
Low Power Consumption: The 3.3V power input helps reduce system power requirements, making it suitable for portable devices and embedded electronics.
Easy System Integration: Slim profile and compact mechanical structure simplify integration into industrial control equipment, smart terminals, handheld devices, and custom embedded systems.
Typical Applications
Industrial Automation:
- Industrial control panels
- HMI systems
- Embedded controller displays
- Automation equipment interfaces
Medical Equipment:
- Portable diagnostic instruments
- Monitoring systems
- Small medical control devices
- Handheld medical terminals
Smart Devices:
- Smart home control panels
- Intelligent automation systems
- IoT equipment interfaces
- Smart terminal displays
Consumer & Commercial Electronics:
- Portable electronic devices
- POS systems
- Financial terminals
- Embedded development projects
- Automotive electronic accessories
Customization Services
Custom development services are available according to project requirements, including:
- Touch panel integration
- Interface customization
- Brightness adjustment
- Cover glass solutions
- FPC structure modification
- Mechanical dimension optimization
- Optical enhancement solutions
OEM and ODM projects are supported for industrial and commercial applications.
Quality Control
Each display module undergoes multiple reliability and functional tests before shipment, including:
- High and low temperature testing
- High humidity operation testing
- Display aging verification
- Visual inspection
- Electrical performance testing
- Reliability sampling inspection
This ensures stable product performance and long-term operational reliability.
Packaging & Shipping
Available Shipping Methods:
- DHL
- FedEx
- UPS
- Air Freight
- International Express Services
Lead Time:
- Standard products: approximately 7 working days
- Custom projects: based on project requirements
Sample Support: Evaluation samples are available for testing and project validation.
Company Introduction
Shenzhen Xinxiangtong Technology Co., Ltd. is a professional display solution provider specializing in TFT LCD modules, touch display solutions, LCD panels, flexible circuit assemblies, and embedded display products.
The company focuses on industrial display applications for automation equipment, medical electronics, smart terminals, automotive electronics, handheld devices, and embedded systems worldwide.
Frequently Asked Questions
Do you provide samples?
Yes, sample units are available for evaluation and compatibility testing.
Can the display be customized?
Yes, customization services are available for interface, brightness, touch function, structure, and optical requirements.
What industries use this display module?
This module is widely used in industrial control, medical equipment, smart devices, embedded systems, portable electronics, and commercial terminals.
What payment methods are supported?
Common international payment methods including bank transfer and online payment services are supported.
What is the typical delivery time?
Standard products usually ship within 7 working days after order confirmation.
Inquiry Support
For pricing, technical documentation, customization requirements, or bulk purchasing information, please contact the sales team with your project specifications and application requirements.
